Experimental data for C7H8 (Quadricyclane)

22 02 02 11 45
Other names
Tetracyclo[3.2.0.0(2,7).0(4,6)]​heptane; [2.2.1.0(2,6).0(3,5)]Quadricycloheptane;
INChI INChIKey SMILES IUPAC name
InChI=1S/C7H8/c1-2-4-5(2)7-3(1)6(4)7/h2-7H,1H2/t2-,3+,4+,5-,6+,7- DGZUEIPKRRSMGK-BEOVHNCFSA-N [C@@H]12C[C@H]3[C@H]4[C@@H]1[C@@H]2[C@@H]34
State Conformation
1A1 C2V
Enthalpy of formation (Hfg), Entropy, Integrated heat capacity (0 K to 298.15 K) (HH), Heat Capacity (Cp)
Property Value Uncertainty units Reference Comment
Hfg(298.15K) enthalpy of formation 336.00   kJ mol-1 webbook
Hfg(0K) enthalpy of formation     kJ mol-1 webbook
Information can also be found for this species in the NIST Chemistry Webbook
Vibrational levels (cm-1) vibrations
Mode Number Symmetry Frequency Intensity Comment Description
Fundamental(cm-1) Harmonic(cm-1) Reference (km mol-1) unc. Reference
1 A1 3083   1996Zho/Liu:65-71
2 A1 2932
3 A1 2861
4 A1 1454
5 A1 1330
6 A1 1250
7 A1 1077
8 A1 985
9 A1 945
10 A1 892
11 A1 797
12 A1 721
13 A2 3055
14 A2 1181
15 A2 1164
16 A2 1030
17 A2 1001
18 A2 828
19 A2 710
20 A2 534
21 B1 3050
22 B1 3038
23 B1 1236
24 B1 1047
25 B1 996
26 B1 906
27 B1 841
28 B1 768
29 B1 398
30 B2 3067
31 B2 2917
32 B2 1360
33 B2 1254
34 B2 1218
35 B2 1030
36 B2 948
37 B2 908
38 B2 697
39 B2 665

vibrational zero-point energy: 27087.0 cm-1 (from fundamental vibrations)
Calculated vibrational frequencies for C7H8 (Quadricyclane).
Rotational Constants (cm-1) rotational constants
See section I.F.4 to change rotational constant units
A B C reference comment
0.14704 0.14495 0.10862 1989Vog/Bau:62

Calculated rotational constants for C7H8 (Quadricyclane).
Product of moments of inertia moments of inertia
2069305amu3Å6   9.4752879373455E-114gm3 cm6
Geometric Data

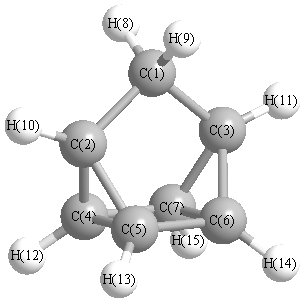

picture of Quadricyclane

Point Group C2v


Internal coordinates
distances (r) in Å, angles (a) in degrees, dihedrals (d) in degrees
Description Value unc. Connectivity Reference Comment
Atom 1 Atom 2 Atom 3 Atom 4

Cartesians
Atom x (Å) y (Å) z (Å)

Atom - Atom Distances bond lengths
Distances in Å


Calculated geometries for C7H8 (Quadricyclane).

Bond descriptions


Examples: C-C single bond, C=C, double bond, C#C triple bond, C:C aromatic bond
Bond Type Count
C-C 10
H-C 9

Connectivity
Atom 1 Atom 2
C1 C2
C1 C3
C1 H8
C1 H9
C2 C4
C2 C5
C2 H10
C3 C6
C3 C7
C3 H11
C4 C5
C4 C7
C4 H12
C5 C6
C5 H13
C6 C7
C6 H14
Electronic energy levels (cm-1)
Energy (cm-1) Degeneracy reference description
0 1   1A1

Ionization Energies (eV)
Ionization Energy I.E. unc. vertical I.E. v.I.E. unc. reference
7.800   8.330   webbook
Dipole, Quadrupole and Polarizability
Electric dipole moment dipole
State Config State description Conf description Exp. min. Dipole (Debye) Reference comment Point Group Components
x y z total dipole quadrupole
1 1 1A1 C2v True     0.020 0.020 1989Vog/Bau:62   C2v 1 2
Experimental dipole measurement abbreviations: MW microwave; DT Dielectric with Temperature variation; DR Indirect (usually an upper limit); MB Molecular beam
Calculated electric dipole moments for C7H8 (Quadricyclane).
Electric quadrupole moment quadrupole
State Config State description Conf description Exp. min. Quadrupole (D Å) Reference comment Point Group Components
xx yy zz dipole quadrupole
1 1 1A1 C2v True       C2v 1 2

Calculated electric quadrupole moments for C7H8 (Quadricyclane).
References
By selecting the following links, you may be leaving NIST webspace. We have provided these links to other web sites because they may have information that would be of interest to you. No inferences should be drawn on account of other sites being referenced, or not, from this page. There may be other web sites that are more appropriate for your purpose. NIST does not necessarily endorse the views expressed, or concur with the facts presented on these sites. Further, NIST does not endorse any commercial products that may be mentioned on these sites. Please address comments about this page to [email protected].
squib reference DOI
1989Vog/Bau:62 B Vogelsanger, A Bauder "Pure Rotational Spectrum and Dipole Moment of Quadricyclane Determined by Microwave Fourier Transform Spectroscopy" J. Mol. Spect. 136, 62-67 (1989) 10.1016/0022-2852(89)90219-1
1996Zho/Liu:65-71 X Zhou, R Liu "Density functional theory study of vibrational spectra. 3. Assignment of fundamental vibrational modes of quadricyclane" Vibrational Spectroscopy 12 ( 1996) 65-7 1 10.1016/0924-2031(96)00008-2
webbook NIST Chemistry Webbook (http://webbook.nist.gov/chemistry) 10.18434/T4D303

Got a better number? Please email us at [email protected]
